The Halbeck Array: Unleashing Maximum Magnetic Strength with Minimal Material Discover the revolutionary Halbeck array—a high-efficiency permanent

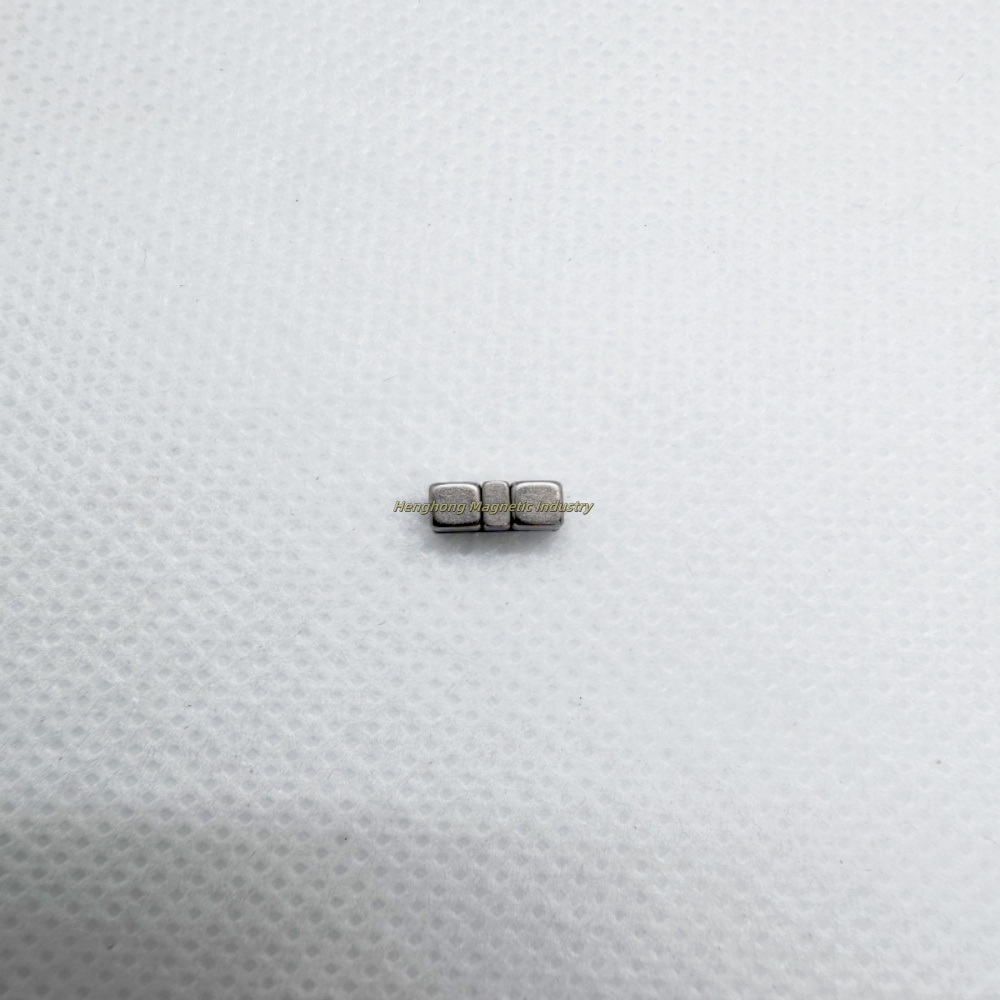

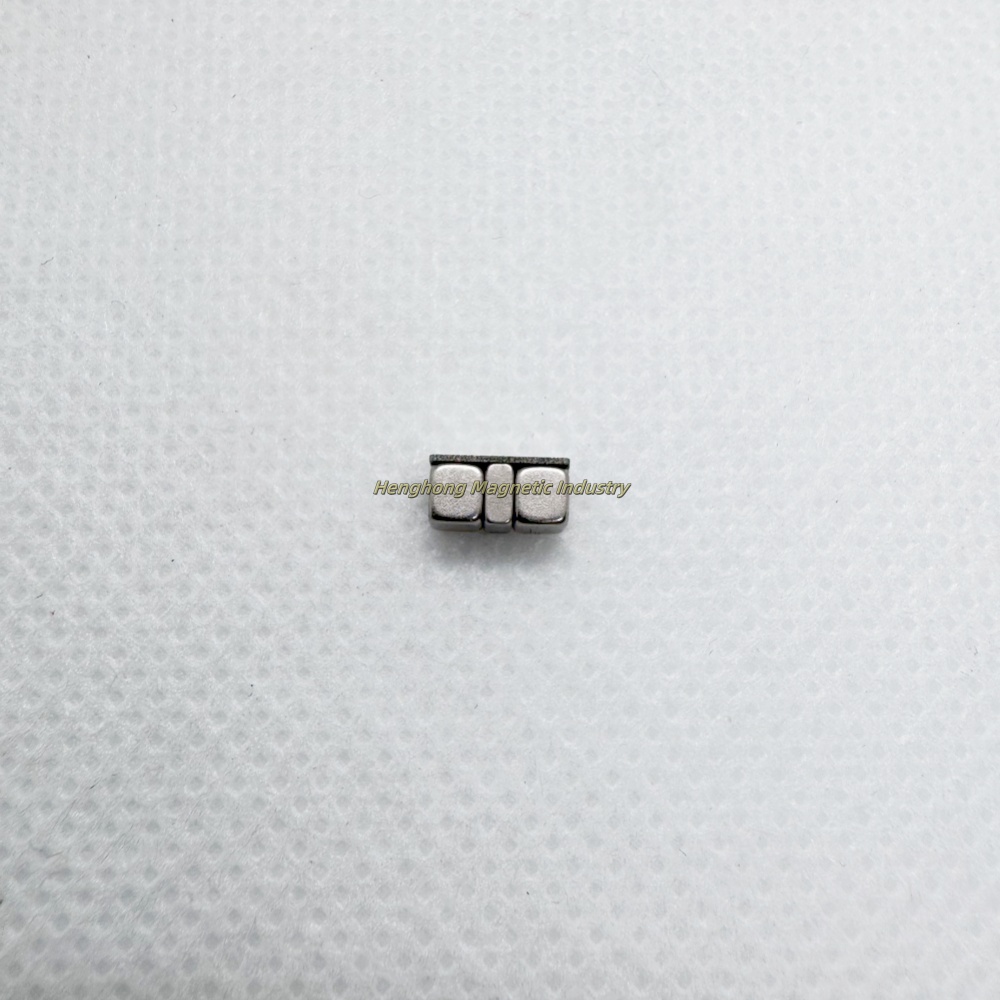

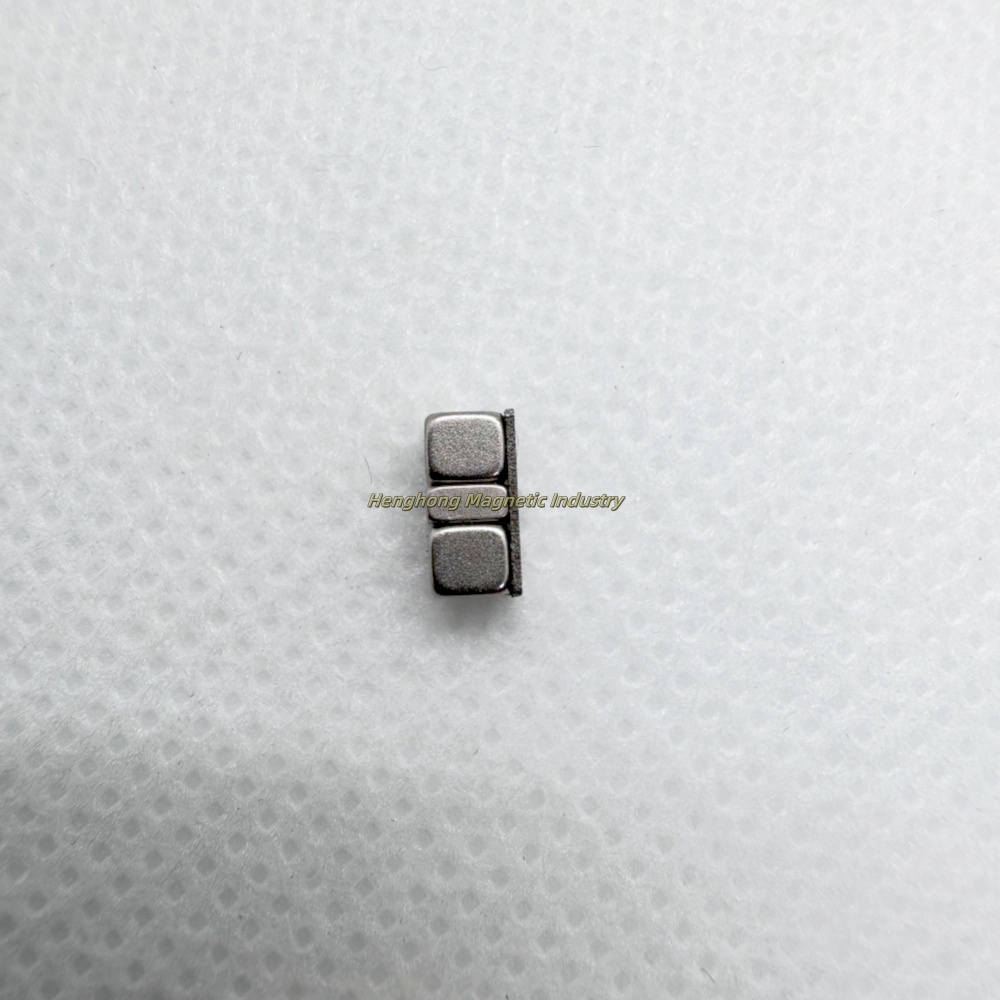

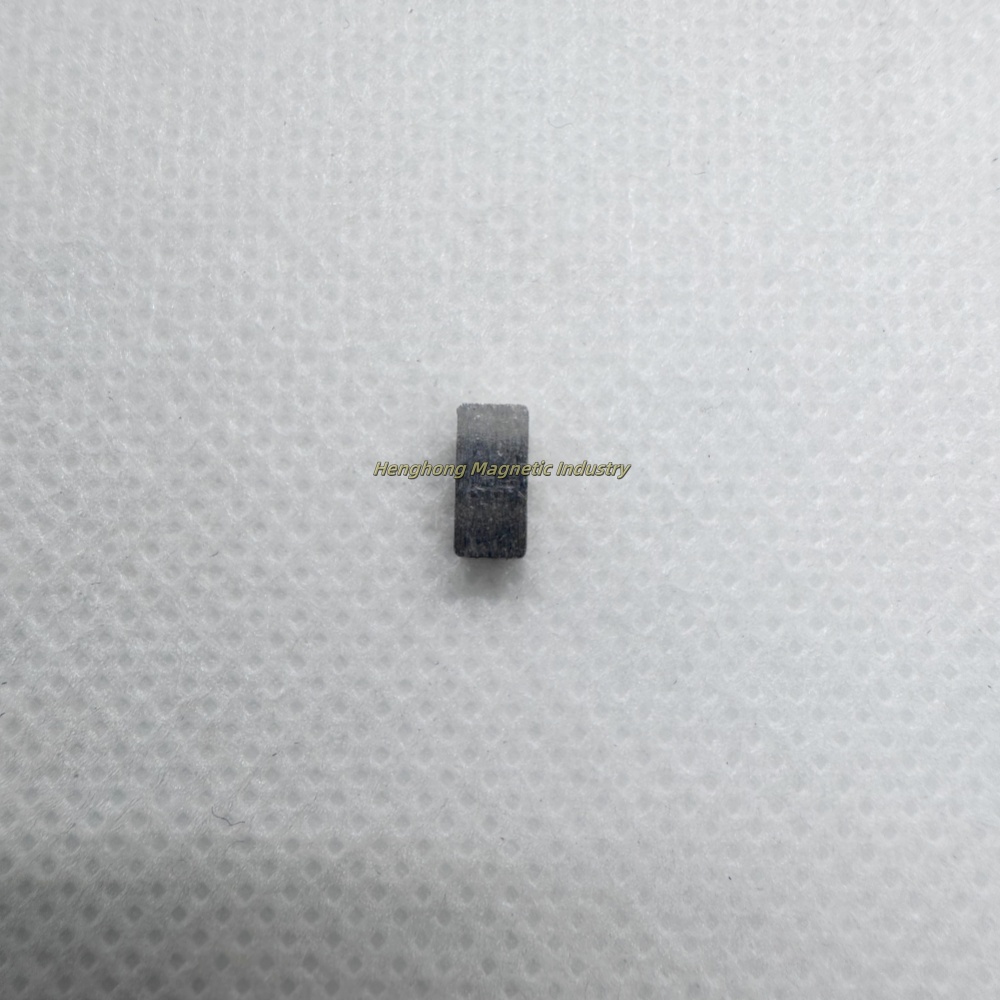

Magnet structure engineered to produce the strongest magnetic field using the least amount of rare earth material. This innovative design leverages precise arrangements of neodymium iron boron (NdFeB) magnets with varying polarization directions, enabling magnetic flux concentration on one side while significantly reducing field strength on the opposite side. The result is an optimized unilateral magnetic field ideal for advanced applications where precision and performance are critical. Key Features - Engineered for peak magnetic output per unit volume - Utilizes sintered N54H grade neodymium magnets for superior coercivity and energy product - Constructed from corrosion-resistant stainless steel 304 for durability in harsh environments - Modular assembly with two large and one small magnet configuration for flexible integration - Multiple surface finishes including nickel plating, zinc coating, black epoxy, phosphating, and black nickel for enhanced aesthetics and environmental resistance Detailed Description The Halbeck array represents a breakthrough in permanent magnet technology, combining scientific principles of magnetic flux manipulation with industrial-grade manufacturing. By aligning magnets with alternating polarities according to a proprietary geometric pattern, this structure creates a focused magnetic field on one face—ideal for applications requiring directional magnetic influence without unnecessary bulk. Unlike traditional configurations that waste magnetic potential on both sides, the Halbeck design channels nearly all flux toward the target area, increasing efficiency by up to 30% compared to standard arrangements. The use of high-grade sintered NdFeB N54H ensures stable performance across temperature ranges from -40°C to 120°C, making it suitable for demanding conditions. Each component is meticulously coated—not only for protection against oxidation but also to improve compatibility with surrounding materials in complex systems like MRI machines or maglev transport mechanisms. Applications Across Industries This advanced magnetic architecture finds extensive use in nuclear magnetic resonance imaging devices, where consistent and strong fields are essential for image clarity. It's equally vital in magnetic levitation systems for frictionless motion and in specialized motors such as brushless DC drives used in electric vehicles and robotics. Additionally, researchers and engineers developing next-generation sensors, particle accelerators, and magnetic separation equipment benefit from its compact footprint and powerful unidirectional output. Whether you're designing a cutting-edge medical device or optimizing an industrial automation system, the Halbeck array delivers unmatched magnetic performance tailored to your project’s unique requirements. Customer Testimonials "Implemented in our prototype maglev test rig, the Halbeck array delivered a 25% improvement in lift force compared to conventional setups—without increasing weight or complexity." — Dr. Elena Rodriguez, R&D Lead, Advanced Transportation Systems "Our team was impressed by how quickly we could integrate the array into our existing design. The sample provided allowed us to validate the field uniformity before committing to mass production." — Mark Chen, Engineering Manager, Precision Motor Solutions Frequently Asked Questions What makes the Halbeck array different from regular magnet assemblies? Unlike standard magnet stacks that emit fields in multiple directions, the Halbeck configuration focuses magnetic flux on a single side through strategic polarity alignment—offering greater efficiency and reduced interference. Is the N54H grade suitable for high-temperature environments? Yes, this sintered neodymium iron boron grade maintains excellent magnetic properties up to 120°C, making it ideal for applications involving thermal cycling or continuous operation under load. Can I customize the size or coating for my specific application? Absolutely—we offer OEM services for custom dimensions, magnet arrangements, and surface treatments including black epoxy for electromagnetic shielding or phosphated finishes for improved adhesion in composite structures. How does this compare to electromagnets in terms of power consumption? Permanent magnet arrays like the Halbeck require no electrical input once installed, offering zero operational energy costs while maintaining consistent field strength over time—a key advantage in sustainable engineering designs.
